Imperial I 699W Plattenspieler
Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Country
- Germany
- Manufacturer / Brand
- Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 19673

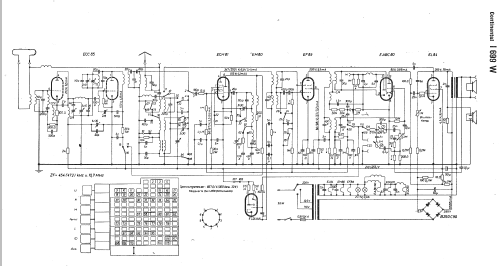

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Imperial I 699W [Plattenspieler] - Continental-Rundfunk GmbH
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1000 x 750 x 410 mm / 39.4 x 29.5 x 16.1 inch
- Notes
- Rundfunk-Chassis ähnlich Imperial 349W. Spiegelbar.
- Net weight (2.2 lb = 1 kg)
- 36 kg / 79 lb 4.7 oz (79.295 lb)
- Price in first year of sale
- 648.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
