• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19445

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EF41 EM34 EF41 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 472* kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

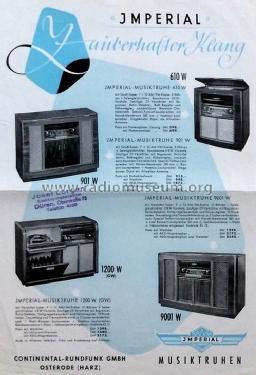

• Model: Imperial 901W [Tonband] - Continental-Rundfunk GmbH

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 999 x 780 x 450 mm / 39.3 x 30.7 x 17.7 inch

• Notes
• AEG-Magnetofon.

• Net weight (2.2 lb = 1 kg)
• 44 kg / 96 lb 14.7 oz (96.916 lb)

• Price in first year of sale
• 1,873.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 143 models, 127 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
