• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1955/1956

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 20089

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC84 PCC85 EF80 EF80 EF80 EF80 PCL81 PCC85 ECL80 PL81 PY81 EY86 EF80 PABC80 PL82 MW43-64

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

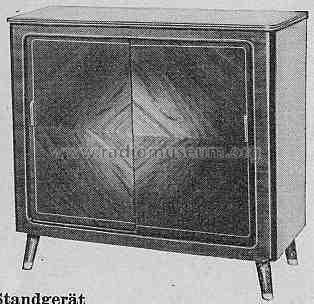

• Model: Imperial FEK2005 - Continental-Rundfunk GmbH

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1100 x 940 x 515 mm / 43.3 x 37 x 20.3 inch

• Notes
• Rundfunkteil: ECC85, ECH81, EF85, EABC80, EM80, EL84. 12 Kanäle im VHF-Bereich.

• Net weight (2.2 lb = 1 kg)
• 70 kg / 154 lb 3 oz (154.185 lb)

• Price in first year of sale
• 1,798.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb
