Imperial FES421
Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Country
- Germany
- Manufacturer / Brand
- Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Year
- 1954/1955
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 19515

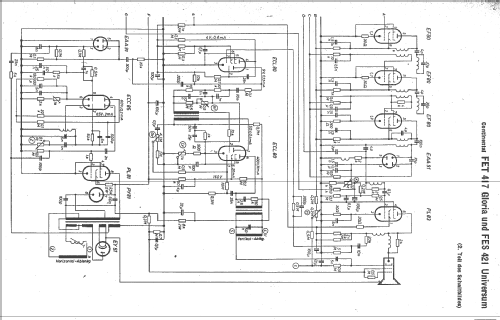

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- PCC84 PCF82 EF80 EF80 EF80 EF80 EAA91 PL83 EF89 EF89 EABC80 EL84 ECL80 ECL80 EAA91 ECC85 PL81 PY81 EY51 MW53-20
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Imperial FES421 - Continental-Rundfunk GmbH
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 650 x 950 x 550 mm / 25.6 x 37.4 x 21.7 inch
- Notes
- 11 VHF-Kanäle + 1 Reserve.
- Net weight (2.2 lb = 1 kg)
- 65 kg / 143 lb 2.7 oz (143.172 lb)
- Price in first year of sale
- 1,565.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
