Imperial Stereo I760W (760, J760W)

• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20086

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 454/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Imperial Stereo I760W - Continental-Rundfunk GmbH

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1010 x 840 x 420 mm / 39.8 x 33.1 x 16.5 inch

• Notes

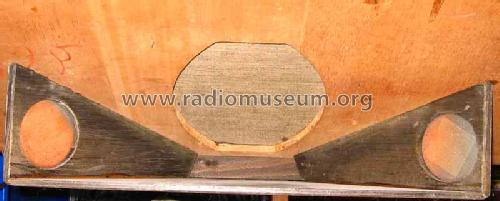

• Abstrahlung aus dem Truhenboden. Auch mit 2. Plattenfach statt Spiegelbar. ZF 454 oder 472 kHz.

• Net weight (2.2 lb = 1 kg)
• 36.5 kg / 80 lb 6.3 oz (80.396 lb)

• Price in first year of sale
• 778.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 3

• Other Models

• Here you find 143 models, 127 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
