• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71837

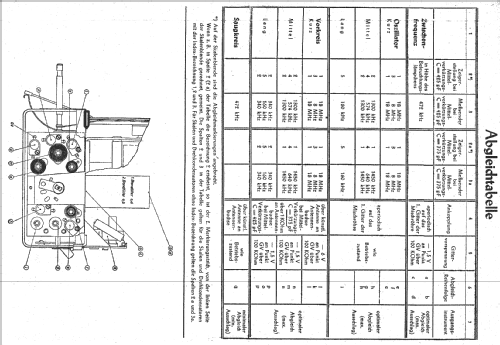

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 ECH4 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

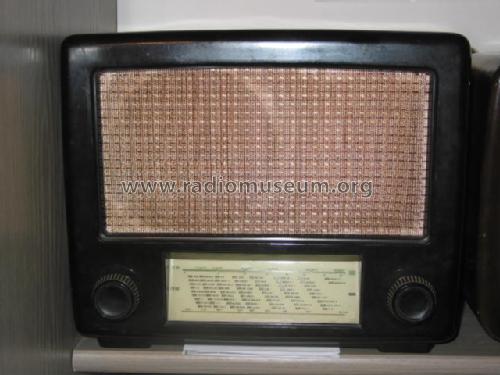

• Model: Continental Standard-Super - Continental-Rundfunk GmbH

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 360 x 300 x 185 mm / 14.2 x 11.8 x 7.3 inch

• Notes

• Keine Netztrennung, Autotrafo !
  Gemeinschaftsproduktion Britische Zone !

  Siehe auch Standard-Super 1947.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Source of data
• Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (Band 7 "Continental-Rundfunk GmbH")

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
