• Country
• France

• Manufacturer / Brand
• Continental Edison, Compagnie Continentale Édison; Paris

• Year
• 1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111486

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6BQ7A ECF80 ECL83 ECF80 EF80 EL84 ECF80 EF80 EF80 EF80 ECL82 ECF80 EL84 17AVP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: ERT-9312 - Continental Edison, Compagnie

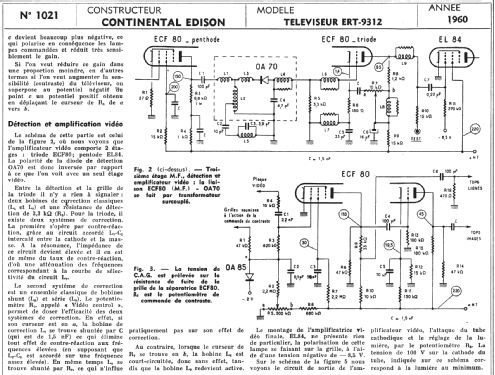

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 148 models, 128 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
