- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340657
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 24 - Courtenay Brand; Various
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 410 x 275 x 206 mm / 16.1 x 10.8 x 8.1 inch
- Notes
-
6-Valve (including magic eye) superhet broadcast (MW) table model receiver.

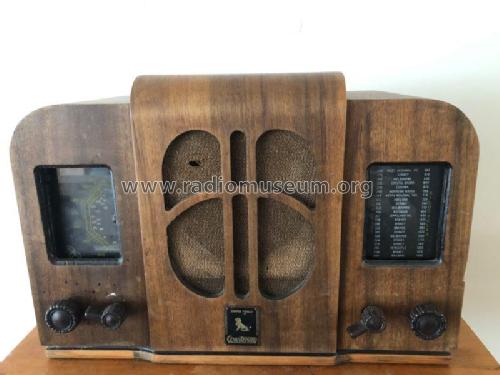

Featured a symmetrical layout with the edge-lit dial on the left and an edge-lit glass plate showing radio stations on the right. Some examples have Australian stations listed suggesting this model may have been exported to Australia.
Was available with and without magic eye tuning indicator.
See also Columbus 24, Stella 24, CQ 24, & Pacific 24.
Manufactured for Turnbull and Jones Ltd by Radio Corporation of New Zealand Ltd.
- Mentioned in
- The Golden Age of Radio in the Home 1986 (Page 66 (Pacific model))
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
