Short Wave Converter 10

Courtenay (Brand); Various manufacturers

Data
Forum
Pictures
Collections

  • Year
  • 1935
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 340064

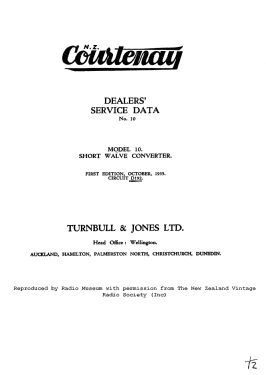

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • from Radiomuseum.org
  • Model: Short Wave Converter 10 - Courtenay Brand; Various
  • Notes

  • This short-wave converter is to work from 230 volts A.C. mains. It consists of two valves, a 1V in the self-contained power pack, and a 6F7, combined pentode mixer and separate triode oscillator. It will tune in shortwave stations from 16-5.5 megacycles ( 19-50 metres) when adapted to any broadcast receiver with reasonable sensitivity.

    The principle of a short-wave converter is to receive short-wave stations and "heterodyne" them with a local oscillator so as to produce a new frequency falling in the broadcast band. When introduced into the antenna and earth terminals of the broadcast receiver this frequency is amplified and detected as a broadcast signal in the usual manner.

  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
