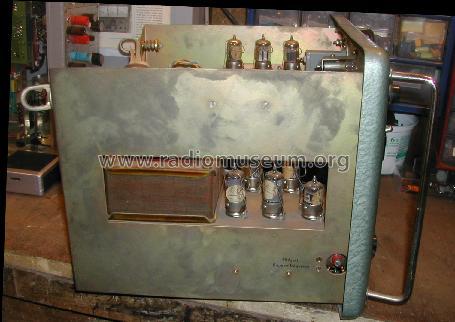

Générateur très basse fréquence - VLF Generator GB64
CRC, Constructions Radioélectriques et Électroniques du Centre; Saint-Étienne
- Country
- France
- Manufacturer / Brand
- CRC, Constructions Radioélectriques et Électroniques du Centre; Saint-Étienne
- Year
- 1965 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 203490
- Number of Tubes
- 21
- Valves / Tubes
- 6AH6 6AU6 6AU6 6AS7 6J6 12AT7 12AT7 12AU7 12AU7 12AX7 12AX7 12AX7 6AL5 6AL5 6AL5 6AL5 6AL5 6AL5 6AL5 6AL5 5Z3 0B2 0B2 85A2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 190; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Générateur très basse fréquence - VLF Generator GB64 - CRC, Constructions
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 265 x 335 mm / 15.7 x 10.4 x 13.2 inch
- Notes
-
GB64 is a very low frequency generator from 0.005 Hz to 500 Hz in 5 ranges.
Accuracy in frequency 2%; output variable up to voltage 40 V peak-to-peak into 10 kΩ load.
Balanced outputs available. Sinus wave distortion 2%
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Source of data
- - - Manufacturers Literature
- Mentioned in
- Electronic Engineering, volume 37 year 1965
- Author
- Model page created by Claude Brunet. See "Data change" for further contributors.
