• Country
• France

• Manufacturer / Brand
• ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215947

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 or 6AT6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org

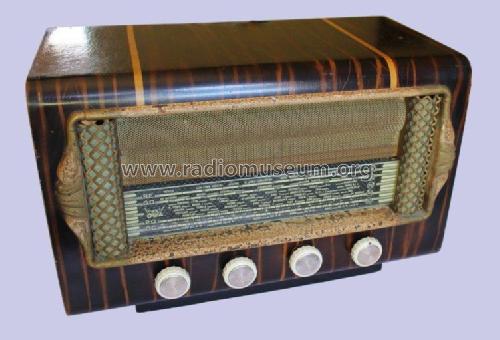

• Model: Champion 531 - ORA, Oradyne, Gérard & Cie,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 250 x 210 mm / 15.7 x 9.8 x 8.3 inch

• Notes

• 4 gammes d'ondes : BE (bande étalée) de 6.5 à 5.9 MHz, OC de 18.2 à 5.9 MHz, PO de 1630 à 520 kHz, GO de 300 à 150 kHz.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• Schémathèque Éditions Radio (SER) (No. 719)

• Author
• Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.

• Other Models

• Here you find 209 models, 168 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
