Cristal-Grandin Up-Down V R495 tous courants, 3 gammes
Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Country
- France
- Manufacturer / Brand
- Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232997

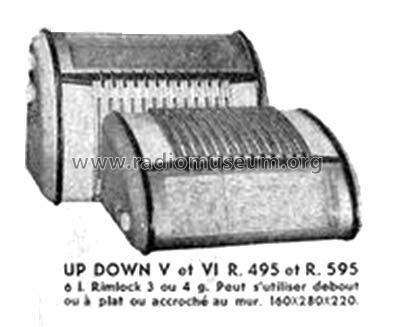

Picture from original flyer.
From a portuguese prospect.
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Cristal-Grandin Up-Down V R495 [tous courants, 3 gammes] - Grandin, Cristal-Grandin SFRT;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 200 x 290 mm / 17.3 x 7.9 x 11.4 inch
- Notes
-
3 gammes d'ondes: GO 1000...2000 m, PO 185...600 m, OC 16...51 m. Cadran 326 x 106 mm. Prises PU et H.P. supplémentaire.
Coffret tôle décorée en teintes differentes et matière colorée.
Voir aussi les modèles suivantes:
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
