B-5579-M Ch= 5579
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36740
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 90 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: B-5579-M Ch= 5579 - Crosley Radio Corp.;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 25 x 40 x 11.875 inch / 635 x 1016 x 302 mm
- Notes
-
The Crosley schematic is for chassis 579, 5579 and 6579 1939/40 battery radios.

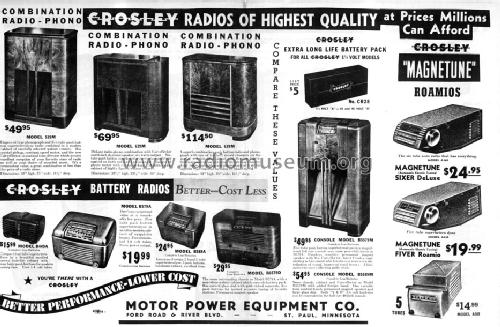

The folder for battery radios 1939/40 shows the models B429A, B449A, B459A, B579A, B589A, B6579D and the console models B5579M and B5589M (but without the 439).
The Crosley model 5579 was also sold (out) by Lafayette under the model number B-5579-M - for only $ 16.25. This is a bit less than a third of the original price. It is in the same cabinet like the model B-5589-M, but the latter has an additional short wave band. Both feature a walnut veneer cabinet and 5 push-buttons for selecting a preset station. The loudspeaker is housed in a "Curviflector" acoustic chamber.
See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41.
- Price in first year of sale
- 49.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Lafayette Radio Catalog (catalog NO.82, page 32)
- Literature/Schematics (1)
- Table Top Radios Vol. 4 Stein 2003 (page 71.)
