• Country
• Austria

• Manufacturer / Brand
• Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26820

• • alternative name: Hekaphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EF85 EABC80 EL84 EZ80 EM85

• Main principle
• Superheterodyne (common); ZF/IF 485/10750 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

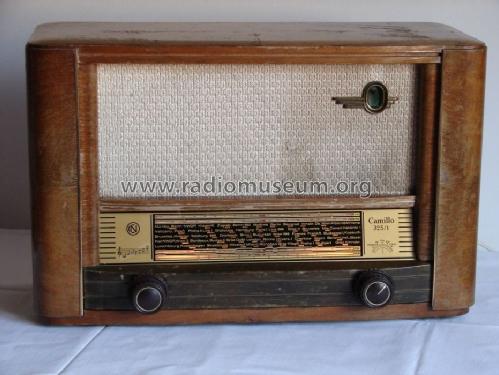

• Model: Camillo 325/1 - Czeija, Nissl & Co., Standard,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 340 x 210 mm / 20.5 x 13.4 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 2,400.00 S

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
