• Country
• Austria

• Manufacturer / Brand
• Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8277

• • alternative name: Hekaphon

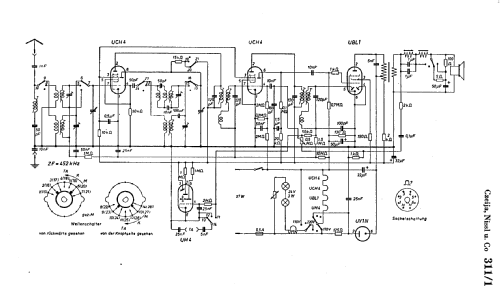

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH4 UCH4 UBL1 UY1N UM4

• Number of Transistors

• Semiconductors
• Heissleiter

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

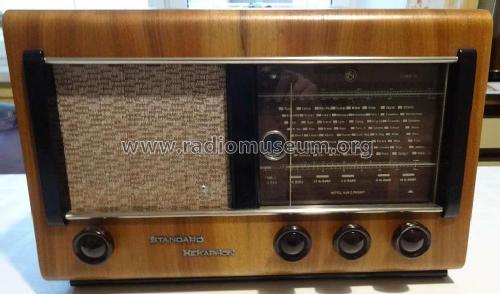

• Model: Hekaphon Super 311-1 - Czeija, Nissl & Co., Standard,

• Shape
• Tablemodel, low profile (big size).

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
