Super-Sept Antipile (Super VII) 1932, batterie
de Gialluly, SINDAR (S.I.N.D.A.R.); Paris
- Country
- France
- Manufacturer / Brand
- de Gialluly, SINDAR (S.I.N.D.A.R.); Paris
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256944
Le Matin, Paris, 20-7-1932
Le Matin, Paris, 20-7-1932
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 30 cm = 11.8 inch
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super-Sept Antipile [1932, batterie] - de Gialluly, SINDAR S.I.N.D.A.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 0 x 1000 x 0 mm / 0 x 39.4 x 0 inch
- Notes
-

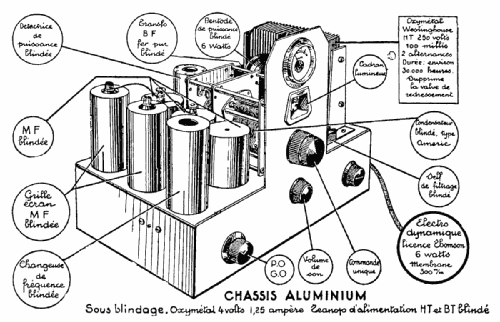

Commande à un seul bouton. Châssis aluminium. Cadran lumineux étalonné en 80 postes européens environ. Prise pick-up. Version de récepteur fourni avec son alimentation à l'intérieur.
Meuble en noyer frisé ou acajou.
Nb: ce modèle n'a probablement pas été appelé Antipile - mais nous ne savons pas.
- Price in first year of sale
- 3,660.00 FRF
- Mentioned in
- Le Matin, Paris, 20-7-1932
