- Country
- France
- Manufacturer / Brand
- RD Radio, Éts. R. Dehay et Cie; Charenton
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63088
-
- Brand: Grivox

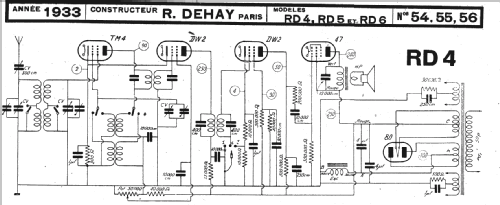

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 125 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: RD4 - RD Radio, Éts. R. Dehay et Cie
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in

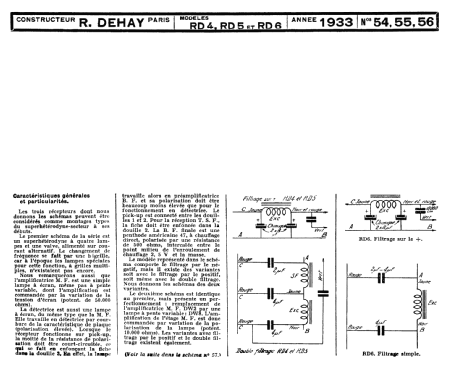

- Schémathèque Toute la Radio (STR) (No. 54)
- Other Models
-
Here you find 53 models, 33 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RD Radio, Éts. R. Dehay et Cie; Charenton
