- Country
- France
- Manufacturer / Brand
- RD Radio, Éts. R. Dehay et Cie; Charenton
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62940
-
- Brand: Grivox

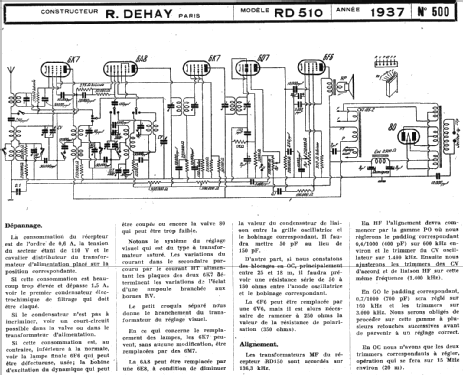

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 136,3 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: RD510 - RD Radio, Éts. R. Dehay et Cie
- Notes
-
Indicateur visuel à ombre.
- External source of data
- Serge Laffont/Martin Renoth
- Literature/Schematics (1)
- Schémathèque Toute la Radio (STR) (No. 500)
