- Country
- France
- Manufacturer / Brand
- Derveaux, Laboratoires (LRD); Paris
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100137

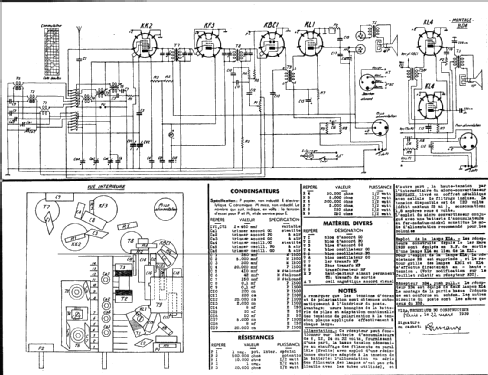

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 6; 12; 24; 32 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

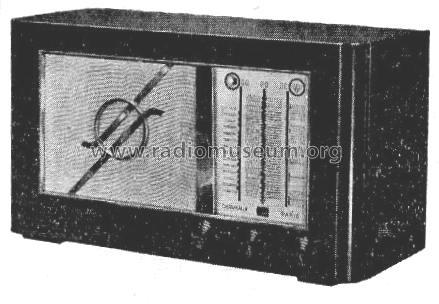

- Model: BD3 - Derveaux, Laboratoires LRD;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 370 x 270 mm / 25.6 x 14.6 x 10.6 inch
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Circuit diagram reference

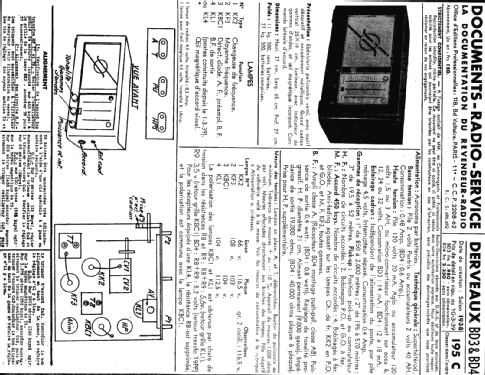

- La Documentation du Revendeur - Radio
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
