- Country
- France
- Manufacturer / Brand
- Desmet, SGER (S.G.E.R.); Lille, Faches-Thumesnil
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62926
Dépliant 1936

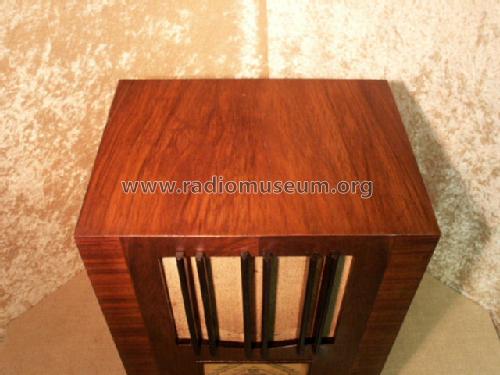

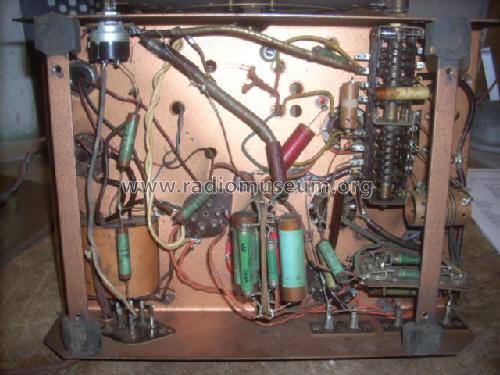

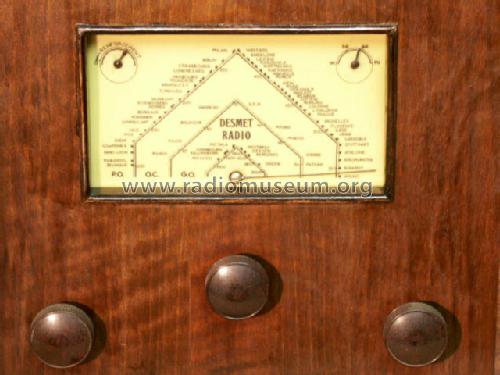

eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
eigenes Verkaufsfoto www.antik-technik.de
Dépliant 1936
Das Lautstärkepoti ist nicht original.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 122,50 kHz; Reflex
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 462 - Desmet, SGER S.G.E.R.; Lille,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 380 x 500 x 310 mm / 15 x 19.7 x 12.2 inch
- Notes
-
Sélectivité 9 kc.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 1,375.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 485)
- Literature/Schematics (1)
- -- Original prospect or advert (Dépliant 1936)
