• Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 11823

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

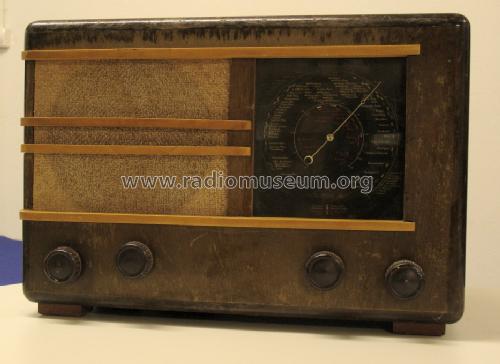

  • Model: Oslo 208 - Deso, Dewald & Sohn, Dewald AG
  • Dimensions (WHD)
  • 450 x 315 x 290 mm / 17.7 x 12.4 x 11.4 inch
  • Price in first year of sale
  • 315.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
