• Country
• Germany

• Manufacturer / Brand
• DeTeWe

• Year
• 1946–1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1488

• • alternative name: Deutsche Telephonwerke GmbH; || Deutsche Tel-w. & und Kabelind. || DTW

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

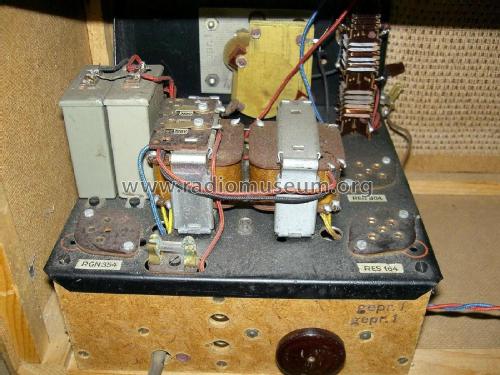

• REN904 REN904 RES164 RGN354

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

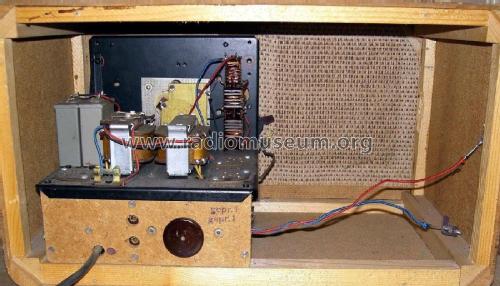

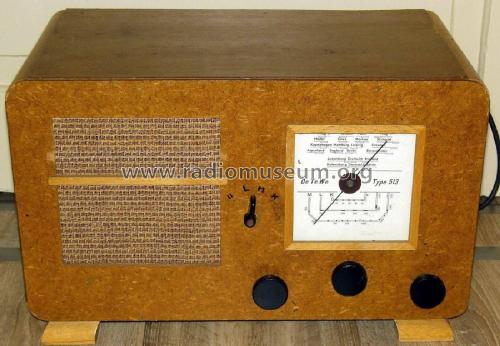

• Model: 513W - DeTeWe

• Notes
• einige = fixe Spannung

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk Nr. 30 von 1948

• Mentioned in
• Radio-Mentor (4956)
