- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1966/1967
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 108547
Q: Dual, Service-Unterlagen 9.66
Q: Dual, Service-Unterlagen 9.66
- Number of Transistors
- 10
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 150; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: HS20 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 450 x 340 mm / 22.4 x 17.7 x 13.4 inch
- Notes

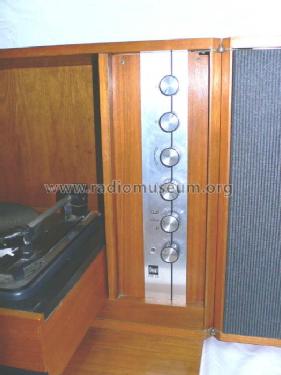

- Heimstation in Schrankform. Der eingebaute Plattenspieler kann nach oben, die beiden Lautsprecher seitlich eingeklappt werden. Lautsprecher abnehmbar. Stereo-Verstärker ist senkrecht eingebaut. Zusätzliche DIN-Eingänge für Radio und Band. Gerätefuß gegen Mehrpreis (52,- DM).
- Net weight (2.2 lb = 1 kg)
- 24.2 kg / 53 lb 4.9 oz (53.304 lb)
- Price in first year of sale
- 768.00 DM
- Source of data
- Handbuch VDRG 1966/1967
- Mentioned in
- - - Data from my own collection
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
