- Country
- France
- Manufacturer / Brand
- Ducastel Frères (DAHG); Clichy, Paris
- Year
- 1936 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 206221
-
- Brand: DAHG
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

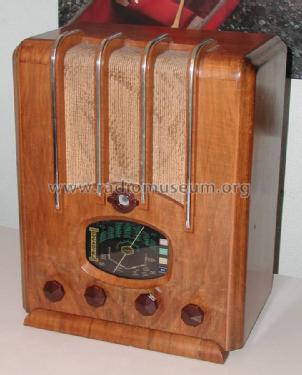

- Model: 146 - Ducastel Frères DAHG; Clichy,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 420 x 530 x 280 mm / 16.5 x 20.9 x 11 inch
- Notes
-
This model was originally fitted with the tube EL3, but later schematics might list the EL3N as tube because the EL3 was not any more on the market and the fully exchangable EL3N was made for a better direct replacement with out any change.
- Author
- Model page created by Werner Schaffner. See "Data change" for further contributors.
