- Country
- France
- Manufacturer / Brand
- Ducastel Frères (DAHG); Clichy, Paris
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 317045
-
- Brand: DAHG

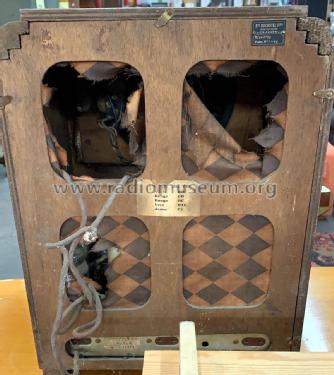

Radio Ducastel 26 TO. Own photo
Radio Ducastel 26 TO.
Radio Ducastel 26 TO.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 26 TO - Ducastel Frères DAHG; Clichy,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
4 gammes d'ondes : PO, GO, OC et OTC, les deux dernières peuvent être une autre bande PO plus OC, ou deux bandes OC.
Ce modèle existe également avec grille HP en bois.
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
