- Country
- France
- Manufacturer / Brand
- Ducastel Frères (DAHG); Clichy, Paris
- Year
- 1952/1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71533
-
- Brand: DAHG
Gerät neu gelackt.
Eigene ebay-Auktion
Eigene ebay-Auktion
Eigene ebay-Auktion
Eigene ebay-Auktion

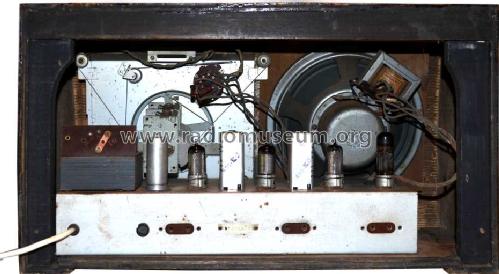

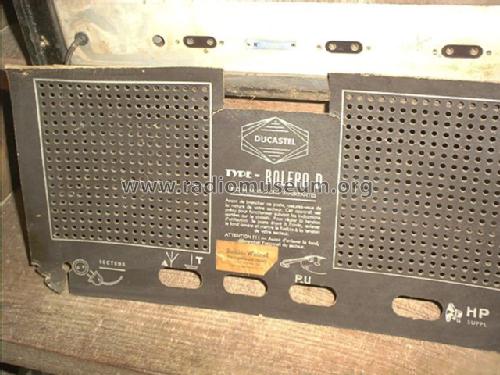

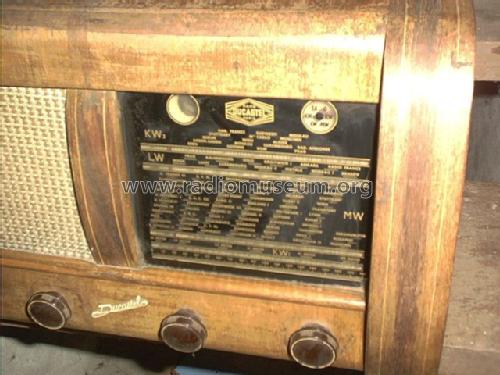

Eigenes Foto
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 145, 220, 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Boléro D - Ducastel Frères DAHG; Clichy,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 290 x 260 mm / 20.9 x 11.4 x 10.2 inch
- Notes
- Bedienung: 4 Drehknöpfe vorne D in der Typenbezeichnung für Deutschland. Gerät hat deutsche Skala.
- Other Models
-
Here you find 90 models, 38 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ducastel Frères (DAHG); Clichy, Paris
Collections
The model Boléro D is part of the collections of the following members.
