• Country
• France

• Manufacturer / Brand
• Ducastel Frères (DAHG); Clichy, Paris

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62956

• • Brand: DAHG

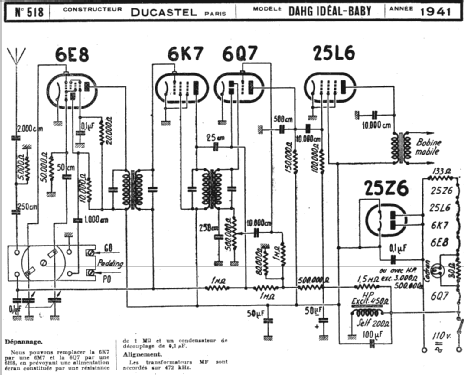

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6E8 6K7 6Q7 25L6 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

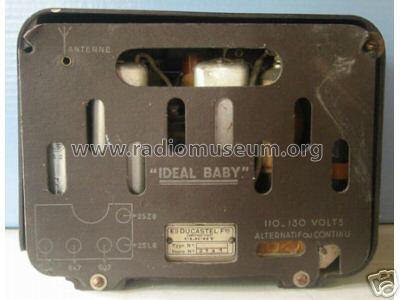

• Model: DAHG Ideal Baby - Ducastel Frères DAHG; Clichy,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9 x 7 x 6 inch / 229 x 178 x 152 mm

• Notes

• La marque DAHG rapportée dans la Schémathèque n'est pas présente sur le modèle.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 518)

• Other Models

• Here you find 90 models, 38 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
