• Country
• France

• Manufacturer / Brand
• DAHG (D.A.H.G.) - voir aussi Ducastel Frères; Paris

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188868

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 unknown_Tube 25Z5 RTC1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 115; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

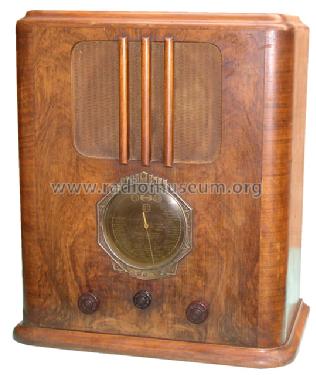

• Model: Inconnu - Unknown 1 - DAHG D.A.H.G. - voir aussi

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 435 x 487 x 255 mm / 17.1 x 19.2 x 10 inch

• Notes

• This model has the same cabinet as the AC model 145.

• Net weight (2.2 lb = 1 kg)
• 11.6 kg / 25 lb 8.8 oz (25.551 lb)

• Author
• Model page created by Zlatan Mumlek. See "Data change" for further contributors.
