• Country
• France

• Manufacturer / Brand
• Ducastel Frères (DAHG); Clichy, Paris

• Year
• 1937 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155806

• • Brand: DAHG

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G EM1 5Y3G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Unknown - Ducastel Frères DAHG; Clichy,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 275 x 225 mm / 21.3 x 10.8 x 8.9 inch

• Notes

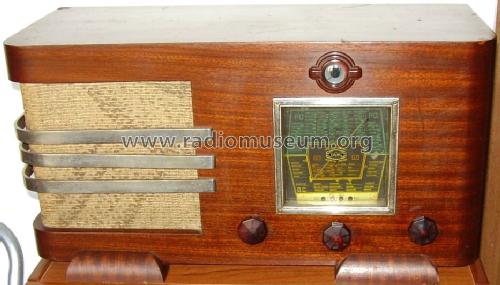

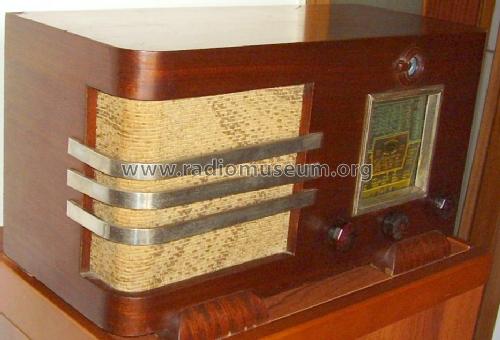

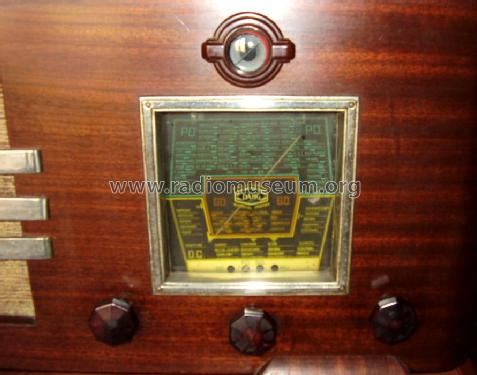

• 3 bands, BC, LW and SW plus phono. Same look as of the DAHG 535, but with the addition of the magic eye just over the tuning dial.

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
