- Country
- France
- Manufacturer / Brand
- Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104084
-
- alternative name: SED
Advert ~1936
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 90-260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

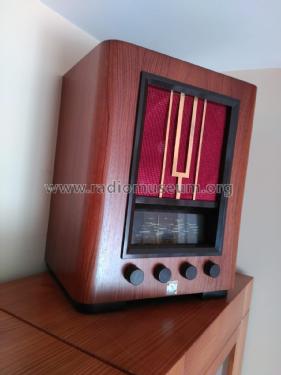

- Model: C625 - Ducretet -Thomson; avant:
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 370 x 440 x 220 mm / 14.6 x 17.3 x 8.7 inch
- Notes
-
Le même modèle pour tous courants, voir C2625.
- Mentioned in
- Toute la radio (No. 20, Sept. 1935)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
- Other Models
-
Here you find 657 models, 522 with images and 286 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Ducretet -Thomson;: C625
Threads: 1 | Posts: 1
Auf der Rückwand meines C625 ist u.a. die 78 angegeben -siehe Bilder beim Modell. Tatsächlich eingesockelt ist aber eine 6D6, so wie hier beschrieben und auf Schaltplänen. Meine unten rechts beschädigte Rückwand weicht ansonsten- soweit erkennbar- nicht von der des Norbert Haselbach ab.
Manfred Rathgeb, 16.Dec.15
