C65

• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104079

• • alternative name: SED

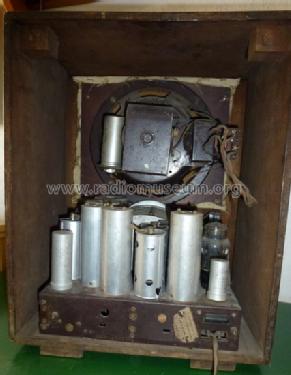

• Picture

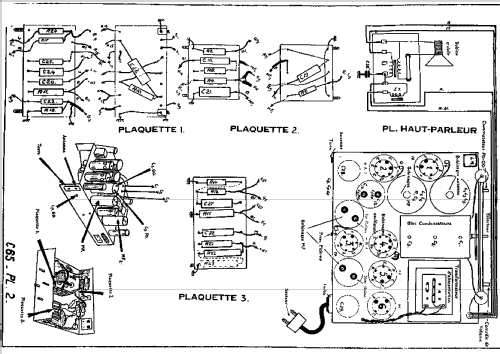

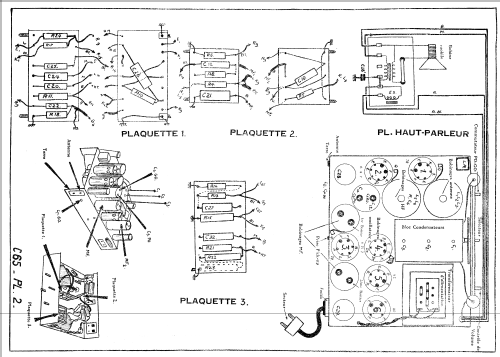

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 6A7 78 6B7 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 120 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: C65 - Ducretet -Thomson; avant:

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 360 x 440 x 280 mm / 14.2 x 17.3 x 11 inch

• Notes

• Anti-fading, réglage silencieux. HP électrodynamique Thomson de 8 pouces.

  Modèle spécial pour 25 périodes.

• Price in first year of sale
• 2,500.00 FRF

• Mentioned in
• -- Original prospect or advert (Le Journal, 28.01.1935)

• Literature/Schematics (1)

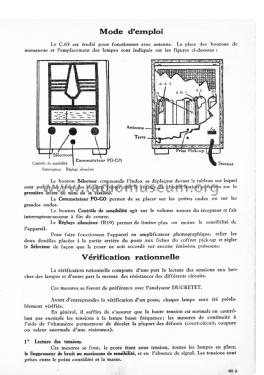

• -- Original-techn. papers.

• Author
• Model page created by John Koster. See "Data change" for further contributors.
