C75

• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 297193

• • alternative name: SED

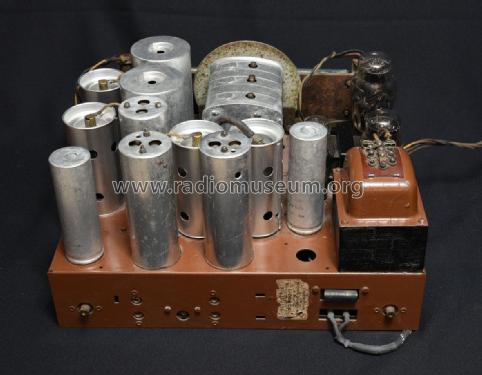

• Picture

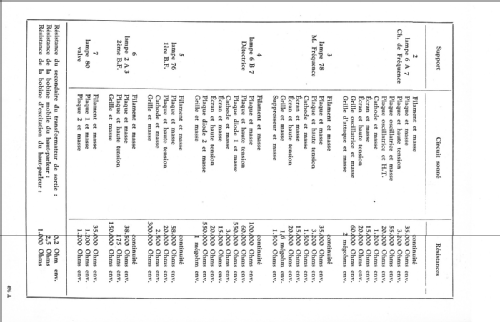

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 78 6A7 78 6B7 76 601 80

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C75 - Ducretet -Thomson; avant:

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Anti-fading, réglage silencieux, contrôle de sensibilité. HP électrodynamique Thomson.

  Ce modèle est identique au C75B, au point de vue aspect extérieur et monatge HF et MF, seul diffère le montage BF et autres détails.

• Price in first year of sale
• 3,100.00 FRF

• Mentioned in
• -- Original prospect or advert (Le Journal, 28.01.1935 - L'Illustration, 20.10.1934)
