• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62931

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 21TH8G 6K7G 6Q7G 25L6G 6AF7 25Z6G

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 115; 135; 210; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

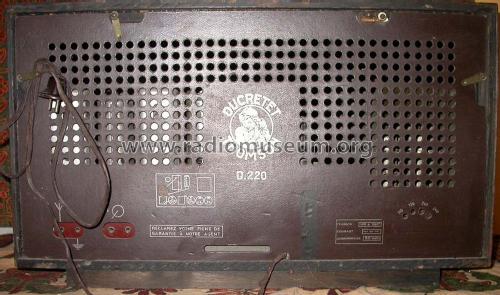

• Model: D220 - Ducretet -Thomson; avant:

• Shape
• Tablemodel, low profile (big size).

• Notes

• 3 gammes d'ondes: OC de 17 à 53 m, PO de 185 à 565 m, GO de 964 à 2124 m. Lampes cadran : 2 x 7 V / 0.1 A.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 489)
