• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 249533

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6E8 6M7 6Q7 25L6G 25Z6G

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

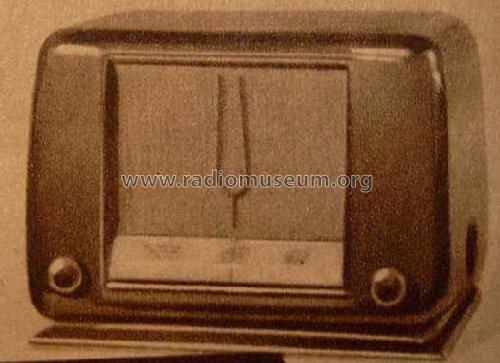

• Model: D824A - Ducretet -Thomson; avant:

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 190 x 190 mm / 11.4 x 7.5 x 7.5 inch

• Notes

• Coffret matière moulée marron (Gehäuse kastanienbraun).

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Mentioned in
• Firmenprospekt 1949

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.
