C636

• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73151

• • alternative name: SED

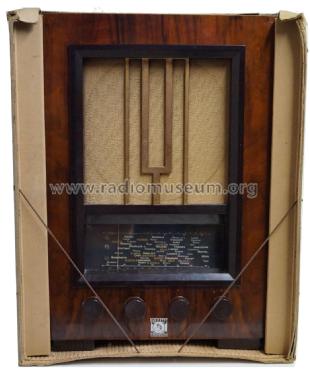

• Picture

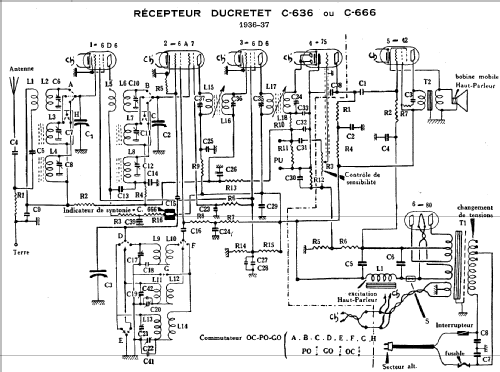

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6D6 6A7 6D6 75 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 450 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: C636 - Ducretet -Thomson; avant:

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 470 x 370 x 280 mm / 18.5 x 14.6 x 11 inch

• Notes

• 3 gammes d'ondes. Anti-fading. Sélectivité variable. Suppresseur de parasites.

  Ébénisterie en noyer ondulé verni.

  Modèle C666 a le même schéma.
  Le même modèle pour tous courants, voir C2636.

• Price in first year of sale
• 2,180.00 FRF

• Mentioned in
• -- Schematic

• Literature/Schematics (1)

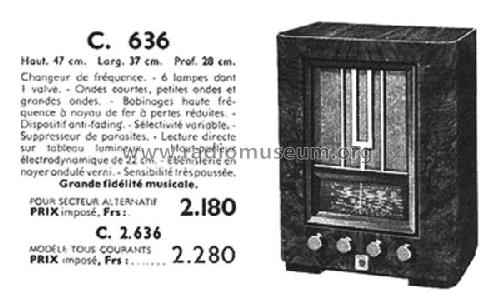

• -- Original prospect or advert

• Literature/Schematics (2)
• Toute la radio (No. 20, Sept. 1935)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
