- Country
- France
- Manufacturer / Brand
- Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
- Year
- 1950–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100170
-
- alternative name: SED
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
- Material
- Wooden case
- from Radiomuseum.org

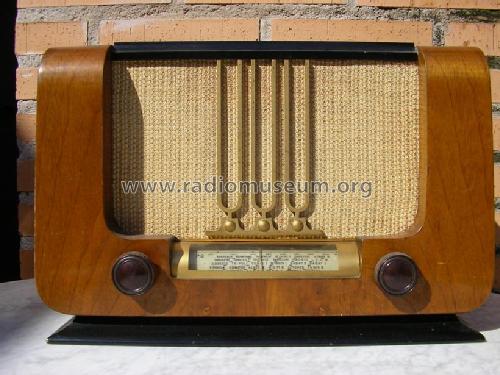

- Model: L025UF - Ducretet -Thomson; avant:
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 385 x 265 x 220 mm / 15.2 x 10.4 x 8.7 inch
- Notes
- Power supply: Non isolating autotransformer; Schematic = L 024. Dial lamps: 2x 6,5V/0,3A.
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Price in first year of sale
- 26,000.00 FRF
- Mentioned in
- - - Manufacturers Literature (Tarif Déc. 1951)
- Literature/Schematics (1)
- -- Original prospect or advert (Gamme 1952)
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
