• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70950

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF93 EBC91 EL90 EZ91 EM34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Wooden case

• from Radiomuseum.org

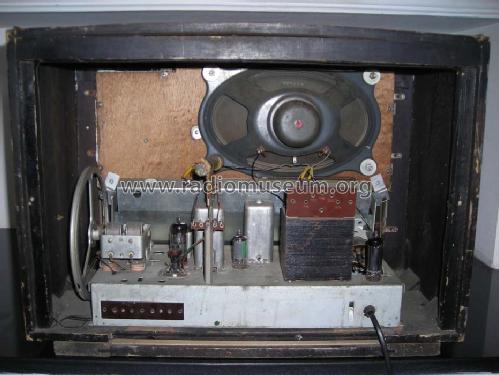

• Model: L536 - Ducretet -Thomson; avant:

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 350 x 240 mm / 19.3 x 13.8 x 9.4 inch

• External source of data
• Serge Laffont/Martin Renoth

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
