• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 112021

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 5 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: MK27 - Ducretet -Thomson; avant:

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Transistors: 4× AC125, 2× AC126, 2× AC127, 2× AC128.

• Literature/Schematics (1)

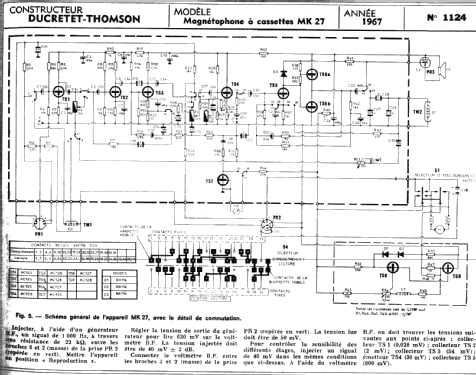

• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
