• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74418

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF89 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

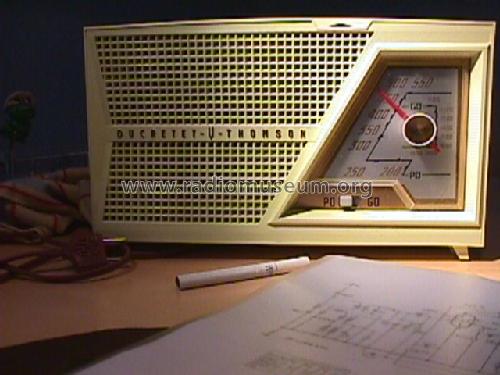

• Model: R2012 - Ducretet -Thomson; avant:

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 256 x 158 x 123 mm / 10.1 x 6.2 x 4.8 inch

• Notes

• 2 gammes d'ondes : PO de 520 à 1600 kc/s et GO de 155 à 265 kc/s.

  Coffret matière moulée bicolore.

  Voir aussi modèle R012 pour secteur alternatif 115-230 volts.

  Attention : alimentation tous courants, châssis rélié au secteur.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 160.41 FRF

• Mentioned in

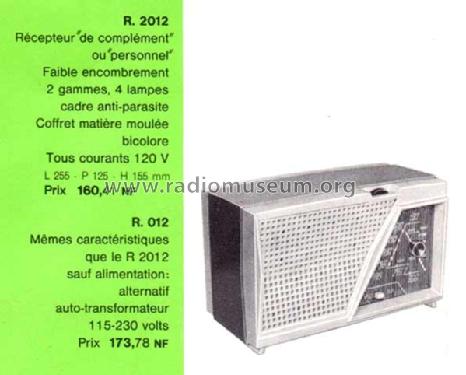

• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Dieter von Loeffelholz. See "Data change" for further contributors.
