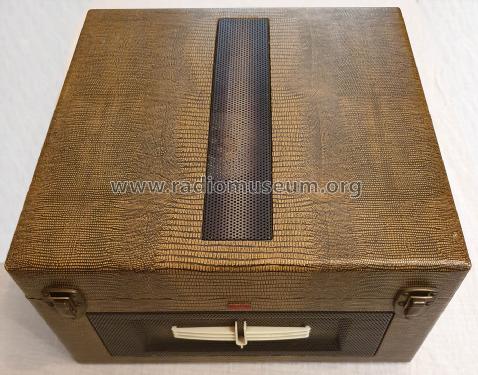

Valise Electrophone E323

Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

Data
Forum
Pictures
Collections

  • Year
  • 1955 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 355803
    • alternative name: SED

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Valise Electrophone E323 - Ducretet -Thomson; avant:
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 370 x 195 x 360 mm / 14.6 x 7.7 x 14.2 inch
  • Notes

  • Speeds: 331/3, 45 and 78 rpm

    Socket for an additional loudspeaker

    Same tube complement as the Electrophone E223 but schematic is different

  • Mentioned in

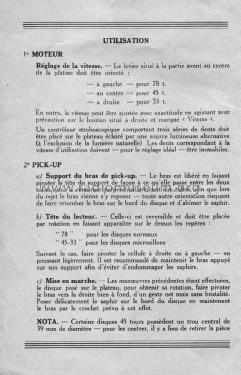

  • - - Manufacturers Literature (Instructions d'emploi)
  • Author
  • Model page created by Christian Don. See "Data change" for further contributors.
