Canterbury RA-103D

DuMont Labs, Allen B., Inc.

Données
Forum
Images
Collections

  • Année
  • 1949 ?
  • Catégorie
  • Récepteur de télévision avec radio ev. Enregistreur
  • Radiomuseum.org ID
  • 168918
    • alternative name: Dumont Television & Radio

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

 Spécifications techniques

  • No. de tubes
  • 30
  • Principe général
  • Super hétérodyne avec étage HF; FI/IF 26400 21900 kHz
  • Gammes d'ondes
  • Bandes en notes
  • Tension / type courant
  • Alimentation Courant Alternatif (CA) / 60 Hz, 117V = 110 -120 Volt
  • Haut-parleur
  • HP dynamique à aimant permanent + bobine mobile / Ø 10 inch = 25.4 cm
  • Puissance de sortie
  • 3 W (qualité inconnue)
  • Matière
  • Boitier en bois
  • De Radiomuseum.org
  • Modèle: Canterbury RA-103D - DuMont Labs, Allen B., Inc.
  • Forme
  • Console de forme générique
  • Remarques
  • The DuMont RA-103 series of televisions (or "Telesets" as DuMont called them) are popular with collectors because of their high quality electrical design and interesting cabinets. All RA-103 models have a 12 inch round CRT and a continuous tuner with a triple roller inductor that covers the VHF low, FM radio, and VHF high bands in one continuous range (44-216 MHz). The tuner is a Mallory "Inductuner" and was referred to as an "Inputuner" by DuMont.

    Early versions of the RA-103 had a 6U5GT or 6G5GT tuning eye (according to Rider TV vol. 1), but most sets found today have a 6AL7GT tuning eye as original equipment.

    The first models of the RA-103 family were introduced in 1947. The RA-103 Chatham, a mahogany table model with an unusual trapezoidal shape (nicknamed the "Doghouse") seems to be the most commonly found today. The RA-103 Stratford is a table model with doors (see Rider TV vol. 1). The RA-103 Meadowbrook is a mahogany console with no doors, the CRT in the upper left, and a 10-inch speaker center bottom. The RA-103 Savoy is a larger mahogany AM/FM/TV/Phono console with doors, having the CRT top center, AM tuning dial on the left, FM/TV tuning dial on the right, speaker bottom left, and phonograph (Webster model 56 record changer) bottom right. The Rider TV index also lists an RA-103 Sutton, but no further information about this model is available.

    The series was updated at some point with the RA-103C Savoy (same cabinet as RA-103 Savoy) and the RA-103C Winthrop (similar to Savoy, but with knotty pine cabinet).

    In 1949, the RA-103D series was introduced, with significant circuitry changes and some different tubes. The RA-103D Rumson is a mahogany table model with a rectangular profile and a square tuner window (prior to the RA-103D models, the TV/FM tuning windows were round). There are also two consoles (without record changer), the RA-103D Sheffield and RA-103D Canterbury, both of which are known to be consoles because of their 10-inch speakers documented in Rider TV vols. 3 and 4. The RA-103D chassis is very similar to the chassis used in the RA-104A Hastings and RA-110A Wellington sets, which had 15-inch and 19-inch CRTs, respectively.
  • Source
  • -- Original prospect or advert
  • Source du schéma

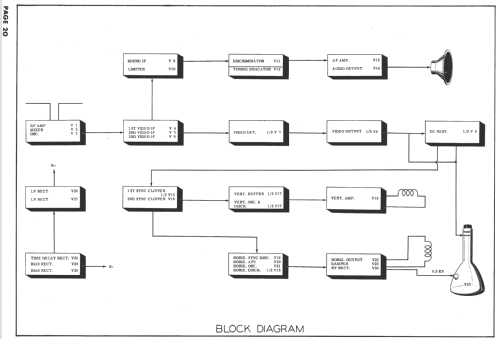

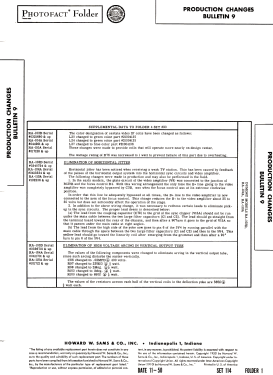

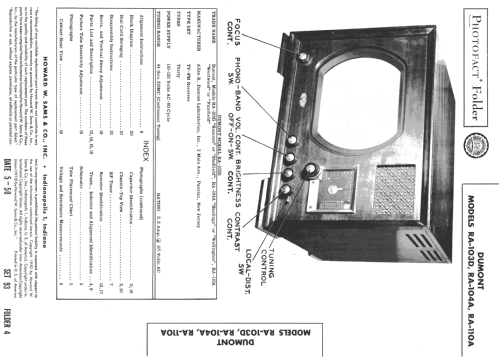

  • Photofact Folder, Howard W. SAMS
  • Schémathèque (1)
  • Rider TV vol. 3-1 and 4-1; SAMS set 93 folder 4
  • Auteur
  • Modèle crée par Thomas Albrecht. Voir les propositions de modification pour les contributeurs supplémentaires.
