- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336290
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: B21 - Dux Radio AB; Stockholm
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 550 x 310 x 240 mm / 21.7 x 12.2 x 9.4 inch
- Notes
-
2 V accumulator for tube heating and 120 V battery for the anodes.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Mentioned in

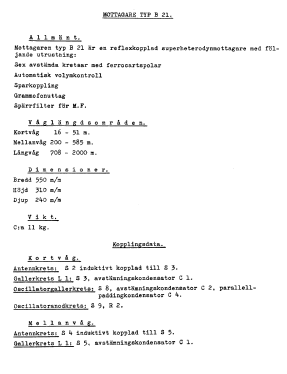

- -- Original-techn. papers. (Dux technical description 1938/39)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
