BT58 Ch= T3
Dux Radio AB; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345637
From my service documentation.

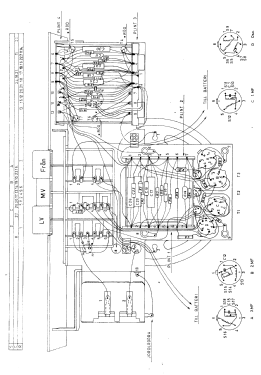

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.36 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BT58 Ch= T3 - Dux Radio AB; Stockholm
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 265 x 155 x 75 mm / 10.4 x 6.1 x 3 inch
- Notes
-
Case in teak, zapelimahogny, jacaranda or light oak.
The model is powered by two 4.5 V batteries in series, resulting in a total voltage of 9 V with (2 batteries in total).
Another option is to put two sets of two in series connected 4.5. V batteries in parallel, also resulting in a total voltage of 9 V (with 4 batteries in total), as shown in the schematic.The same chassis as Conserton B1500T and Philips L3S86T.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
