- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120549
Collezione personale Paolo Alberti
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 115 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

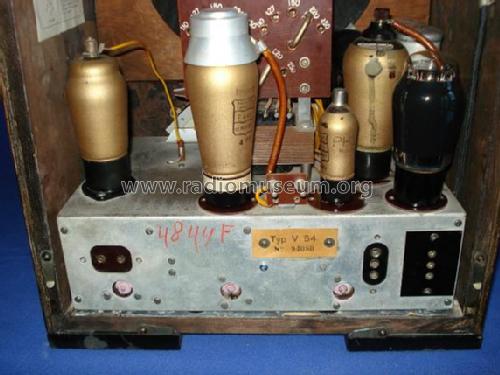

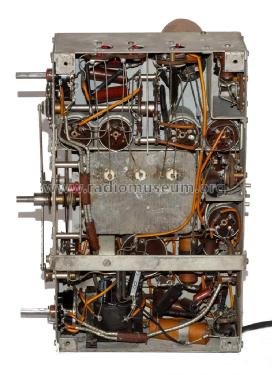

- Model: V54 - Dux Radio AB; Stockholm
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 335 x 410 x 200 mm / 13.2 x 16.1 x 7.9 inch
- Notes
- Schaltung identisch zu Philips 522A.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
