- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336217

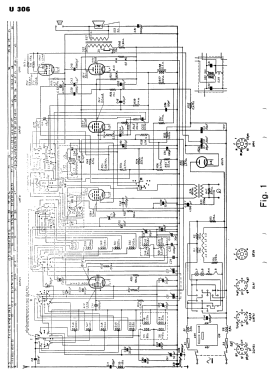

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set / 120; 135; 160; 225 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: U306 - Dux Radio AB; Stockholm
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 358 x 250 mm / 20.5 x 14.1 x 9.8 inch
- Notes
-
Dial lamps Philips 8097D, 19V/97 mA , E10.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Mentioned in
- -- Original-techn. papers. (Dux technical description 1949/50)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
