• Country
• Sweden

• Manufacturer / Brand
• Dux Radio AB; Stockholm

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166087

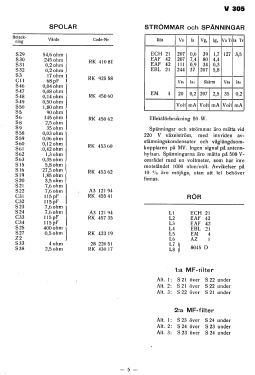

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

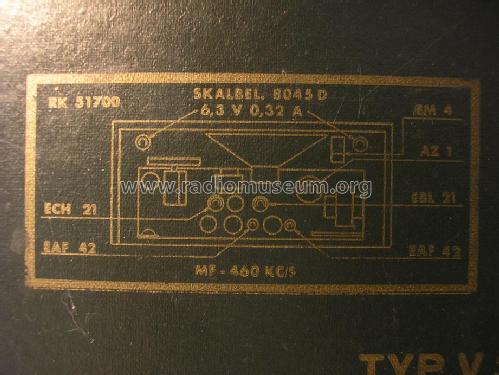

• ECH21 EAF42 EAF42 EBL21 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240; Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: V305 - Dux Radio AB; Stockholm

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 345 x 220 mm / 20.1 x 13.6 x 8.7 inch

• Notes

• Dux Modell V305 hat 5 KW-Bänder mit Bandspreizung (u.A. Band 56-185 m).

  Dux model V305 has 5 SW bands with band spread (a.o. band 56-185 m).

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Price in first year of sale
• 357.00 Skr.

• Mentioned in
• - - Manufacturers Literature (Dux technical description 1949/50)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
