- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337262
Aukro nr 7024033393
Aukro nr 7024033393
Aukro nr 7024033393
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

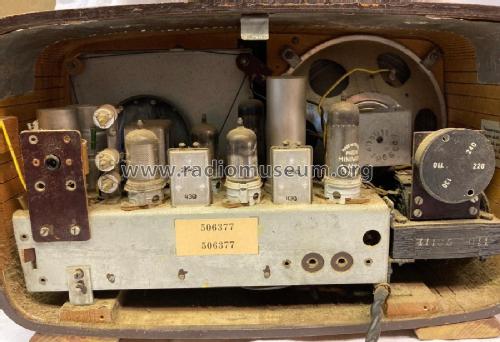

- Model: V312 - Dux Radio AB; Stockholm
- Dimensions (WHD)
- 351 x 217 x 145 mm / 13.8 x 8.5 x 5.7 inch
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Mentioned in
- - - Manufacturers Literature (Dux technical description 1950/51)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
