- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 337264
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: V313 - Dux Radio AB; Stockholm
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 280 x 235 mm / 15.7 x 11 x 9.3 inch
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Mentioned in

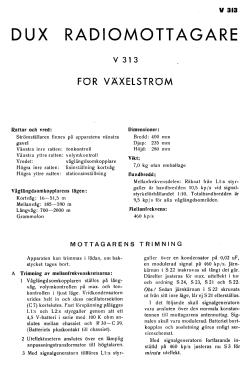

- - - Manufacturers Literature (Dux technical description 1950/51)
- Author
- Model page created by Lars Nord. See "Data change" for further contributors.
