TCR4

Dvorak, Charles, Constructions Radio-Électriques; Paris

Data
Forum
Pictures
Collections

  • Year
  • 1940 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 202351

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TCR4 - Dvorak, Charles, Constructions
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 350 x 250 x 225 mm / 13.8 x 9.8 x 8.9 inch
  • Notes
  • The radio has serial supply for the filaments. A resistor in series with the filaments is mounted at the chassis.
  • Author
  • Model page created by Nicolaas van Dijk. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Dvorak, Charles,: TCR4

Threads: 1 | Posts: 4

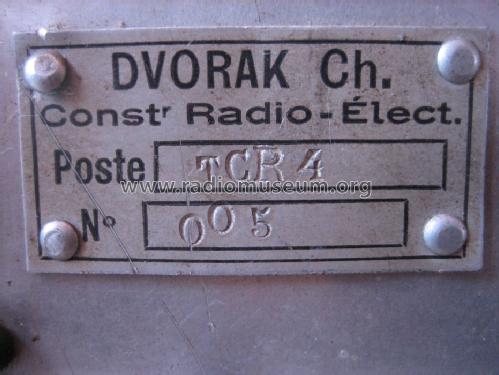

I did purchase a radio of the French manufacturer Charles Dvorak, Paris. It has serial number 005. I did put the manufacturer and the radio at the museum, but I like to know a little more about this manufacturer. Maybe it excisted only a short time.

Anybode heart about Charles Dvorak?

Regards

Nico

Attachments

Nicolaas van Dijk, 31.Aug.11
