- Country
- Great Britain (UK)
- Manufacturer / Brand
- Eagle Products, Eagle International; London, Wembley
- Year
- 1970 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 318211
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

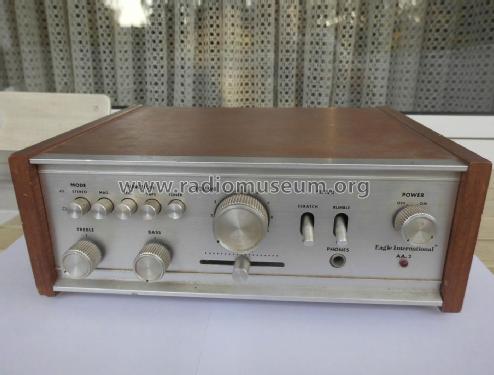

- Model: AA.2 - Eagle Products, Eagle
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 275 x 105 x 220 mm / 10.8 x 4.1 x 8.7 inch
- Notes
-
A stereo hi-fi integrated amplifier with power output of 2 x 10 watts per channel. DIN input sockets for Tuner, and Phono (switchable magnet or crystal). DIN input/output socket for Tape, 2 pin DIN sockets for connection to 1 pair of loudspeakers (8-16 ohms) and an unswitched AC outlet (100 VA max.).
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Author
- Model page created by Michael Bunkenburg. See "Data change" for further contributors.
